可調整立面
adjustable facade
Facade design @ Buro Ole Scheeren
摺疊立面可運用在不規則形體
The lapping plate façade can be applied to irregular forms.
僅在必要的露臺陽台開口,維持幕牆的完整性
Openings are made only where necessary for terraces and balconies, maintaining the integrity of the curtain wall.
在100m高左右高度的立面分割, 在適當位置做比例上的斷點
At a height of around 100 meters, the façade is divided, creating proportional breakpoints at appropriate locations.
立面對應了牆, 陽台, 屋簷, 走廊, 懸挑等情境
The façade responds to conditions such as walls, balconies, eaves, corridors, and cantilevers.

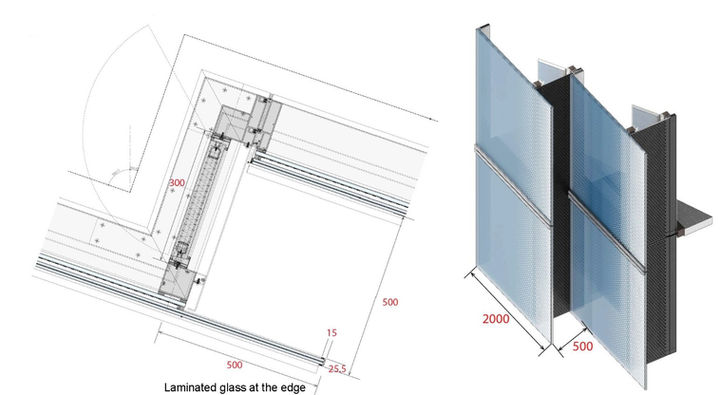

平面圖由於轉角半徑尺寸不一, 需要調整其單元大小讓視覺上更為平順
The façade responds to conditions such as walls, balconies, eaves, corridors, and cantilevers.
漸層陶瓷噴塗牆具遮陽與視野兼具的效果
The gradient ceramic-sprayed wall provides both shading and visibility.
漸層陶瓷噴塗牆具遮陽與視野兼具的效果
The gradient ceramic-sprayed wall provides both shading and visibility.
開啟窗設置在側邊, 避免因開窗造成立面語彙的中斷
Operable windows are placed on the sides to avoid interrupting the façade’s design language.
因應裙樓更多的立面需求, 調整單元尺寸讓立面轉換更自然
To accommodate the greater façade requirements of the podium, the unit dimensions are adjusted to allow a smoother transition of the façade.
